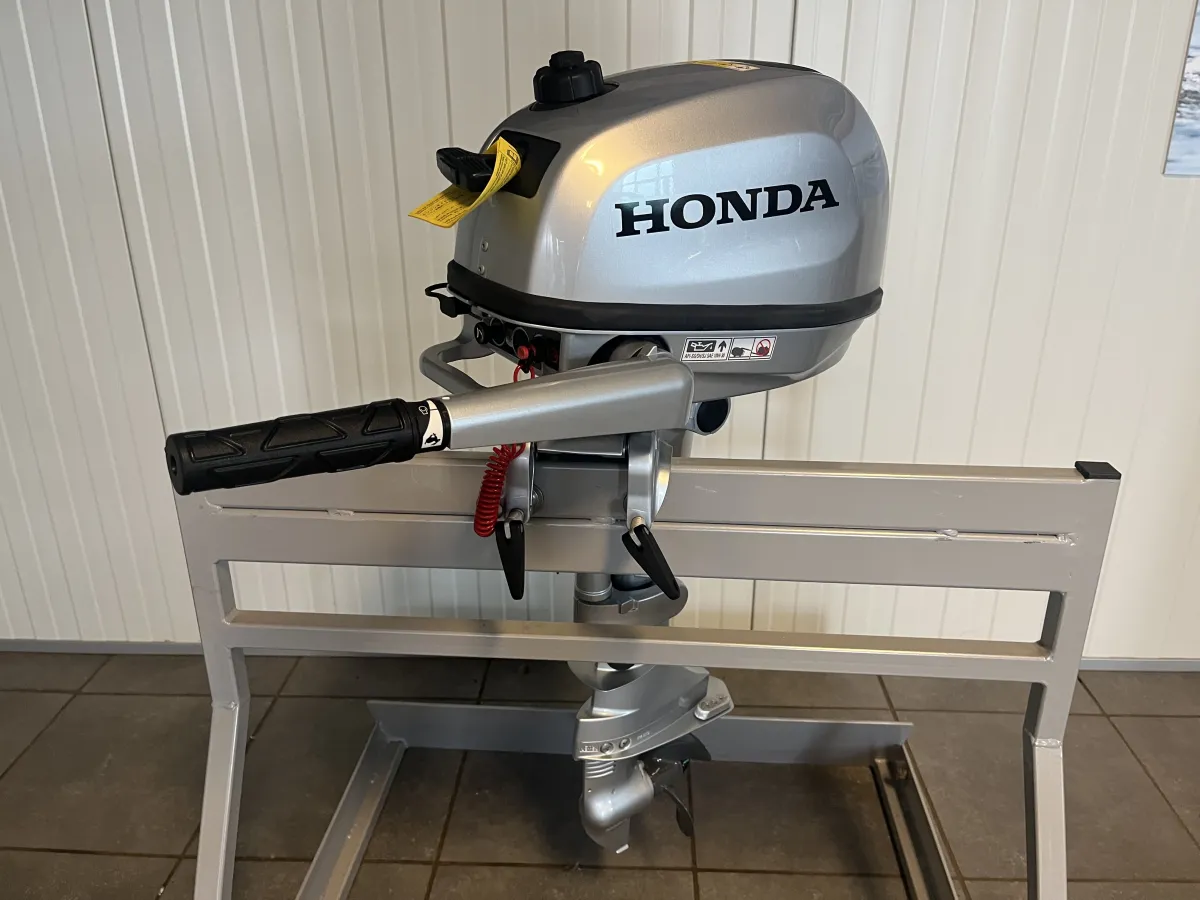

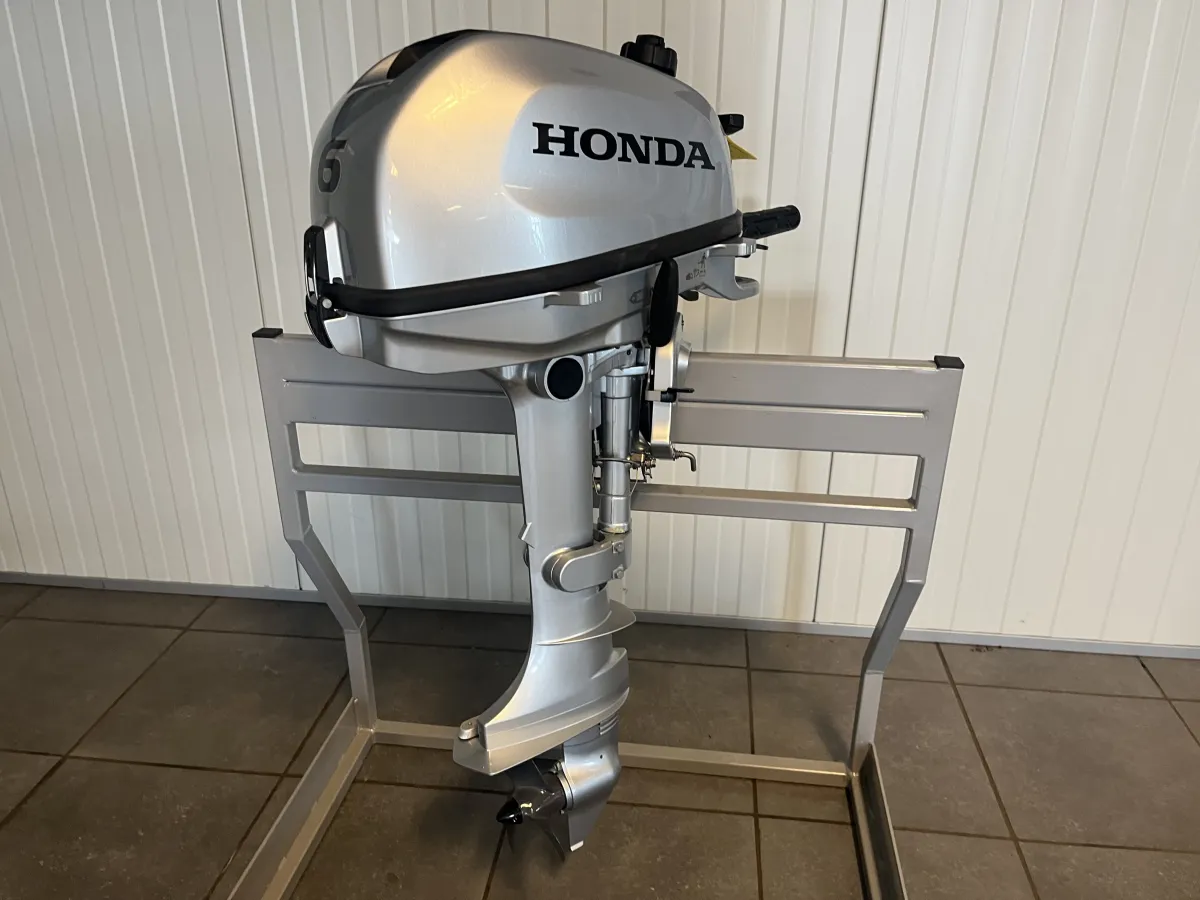

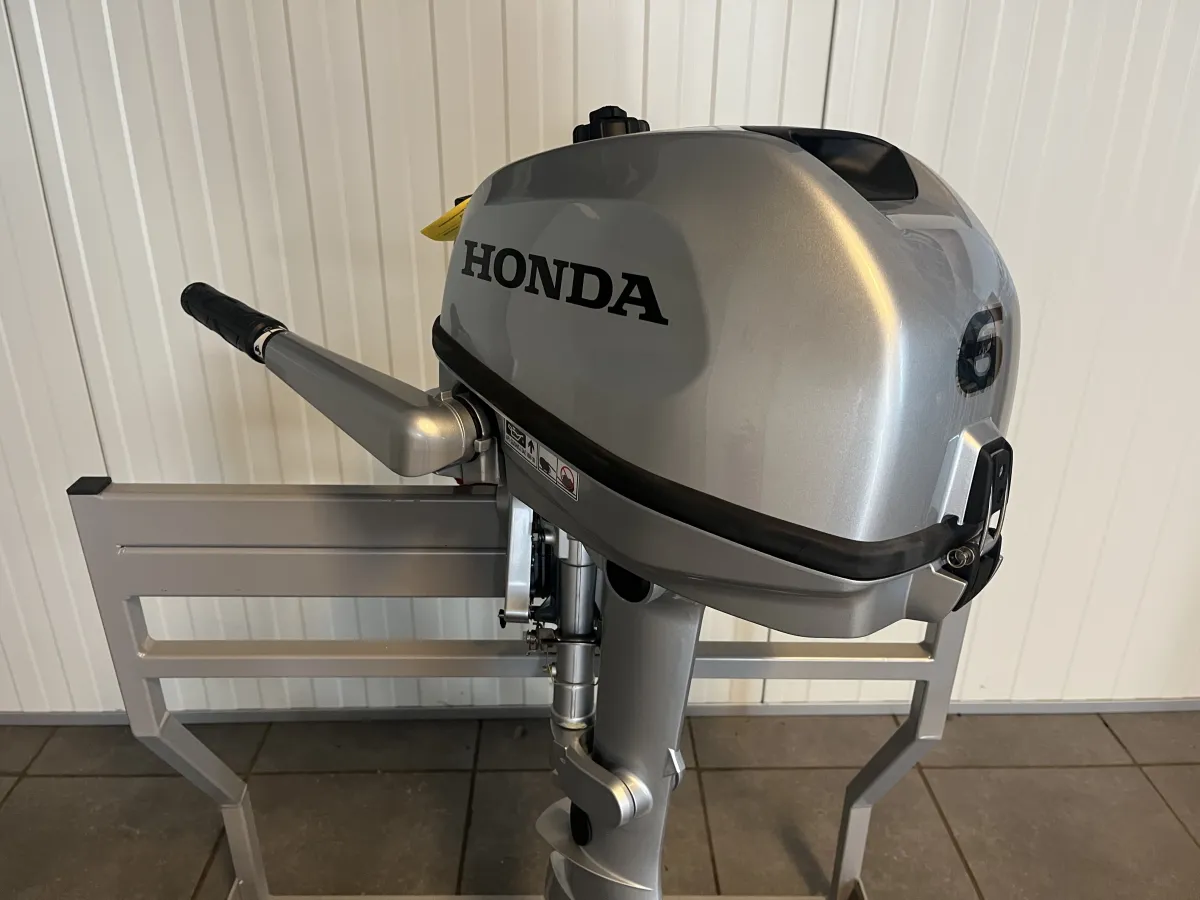

Honda BF 6A
Basic data
| Category: | outboard motor |
| Year of construction: | 2022 |
| Berth: |
Overijse, Belgium
|
Specifications

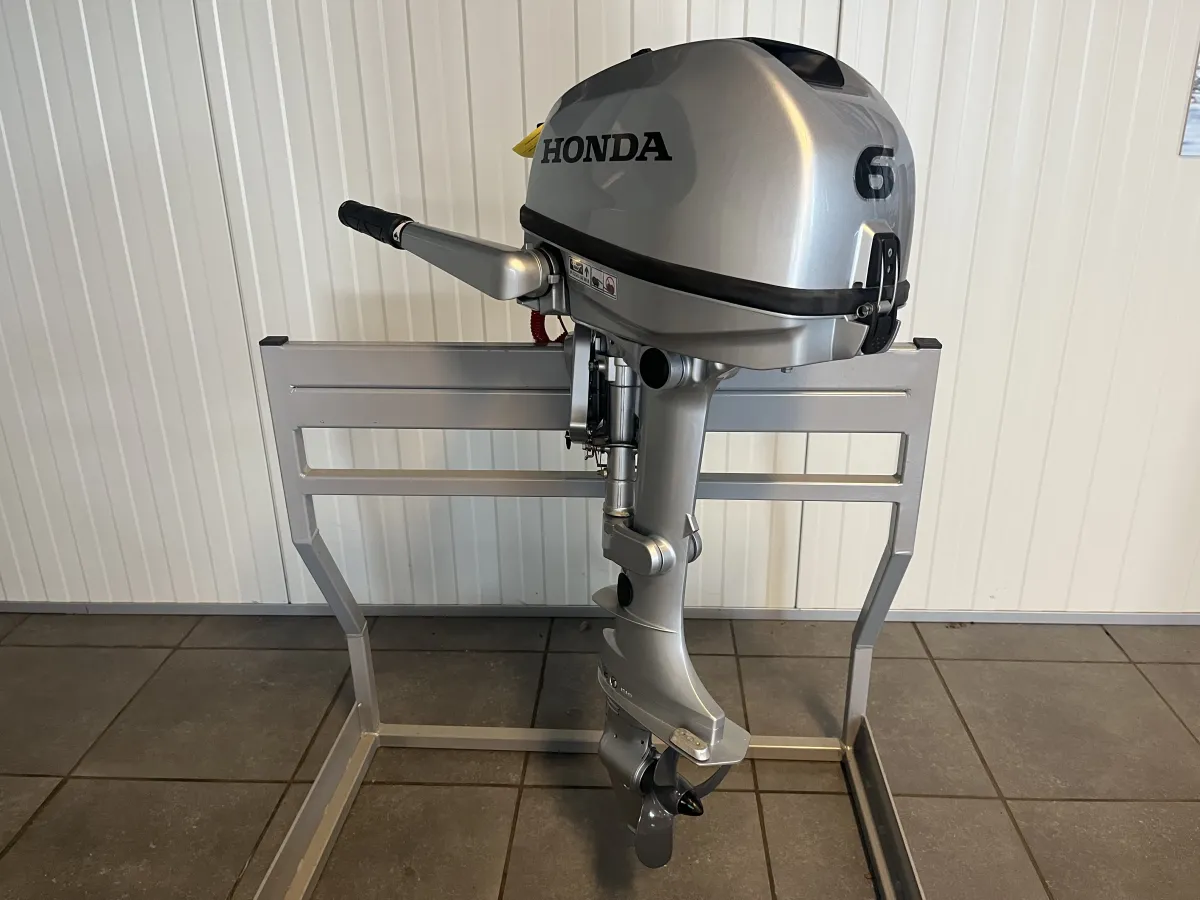

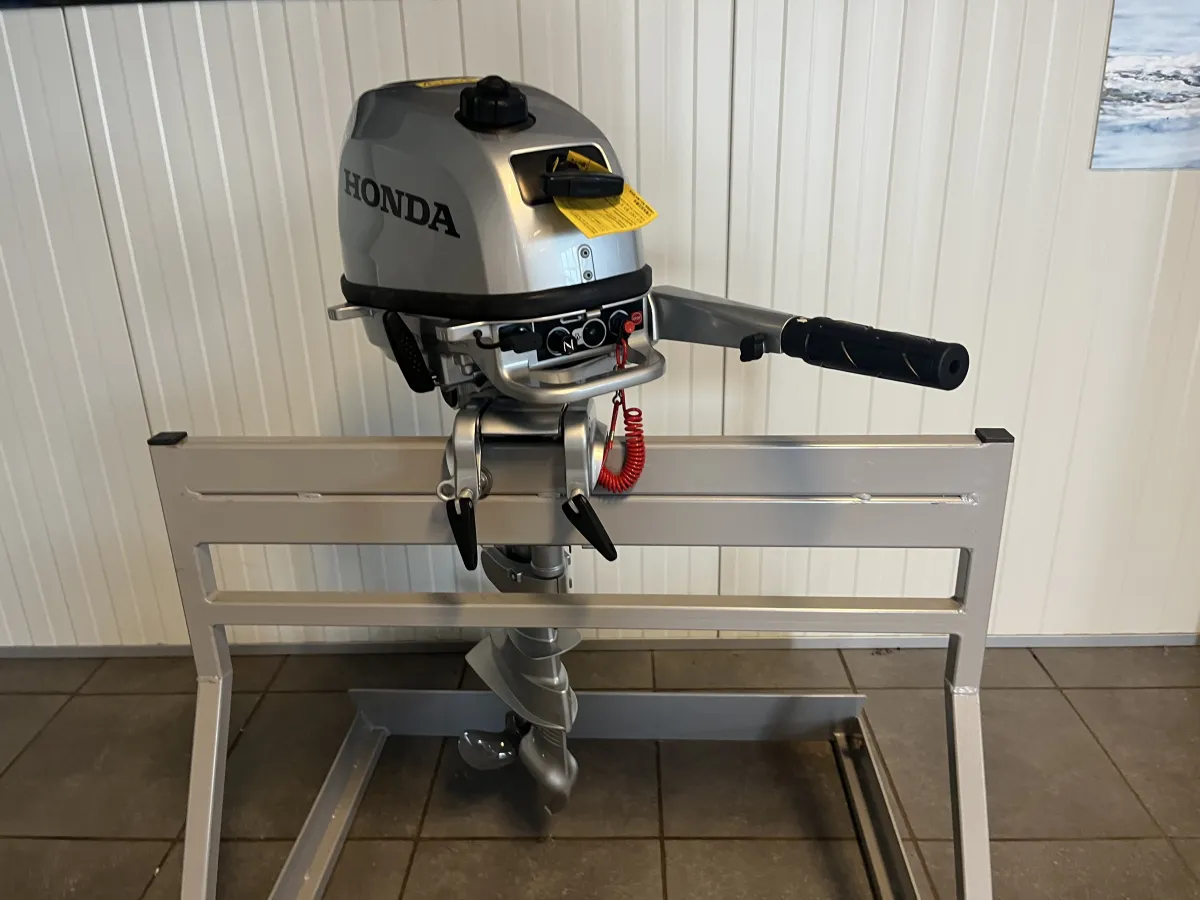

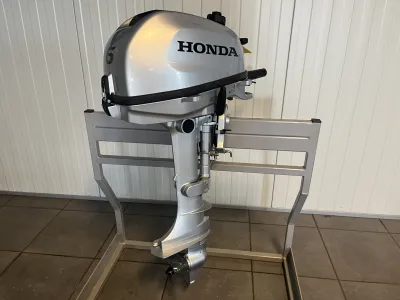

The Honda BF6A is a compact and lightweight outboard motor that is ideal for use on smaller boats, dinghies, and inflatable vessels. This 4-stroke engine, from the 2022 model year, combines low weight with practical features and efficient operation. With a power output of 6 hp and a displacement of 127 cm³, this motor provides sufficient power for recreational use on inland waters and sheltered coastal areas.
Technical Specifications of the Honda BF6A
The Honda BF6A is equipped with a single-cylinder 4-stroke engine with an overhead valve (OHV) design. The bore and stroke measure 60 mm and 45 mm, respectively, resulting in a compression ratio of 9.8:1. This configuration delivers a maximum power of 4.4 kW (6 hp) at 6,000 revolutions per minute. The recommended full-throttle RPM range is between 5,000 and 6,000 RPM, ensuring smooth and efficient power delivery.
The engine uses a carburetor as its fuel system and features a digital CDI ignition. This ignition system contributes to reliable ignition and efficient combustion. The manual start is supported by a decompression system, making it easier to start, even in colder conditions.
Cooling, Lubrication, and Drive
The Honda BF6A is water-cooled, which contributes to a stable operating temperature and a longer engine lifespan. The lubrication system is a wet sump, where the oil is stored in the sump and circulated through the engine for constant lubrication of moving parts.

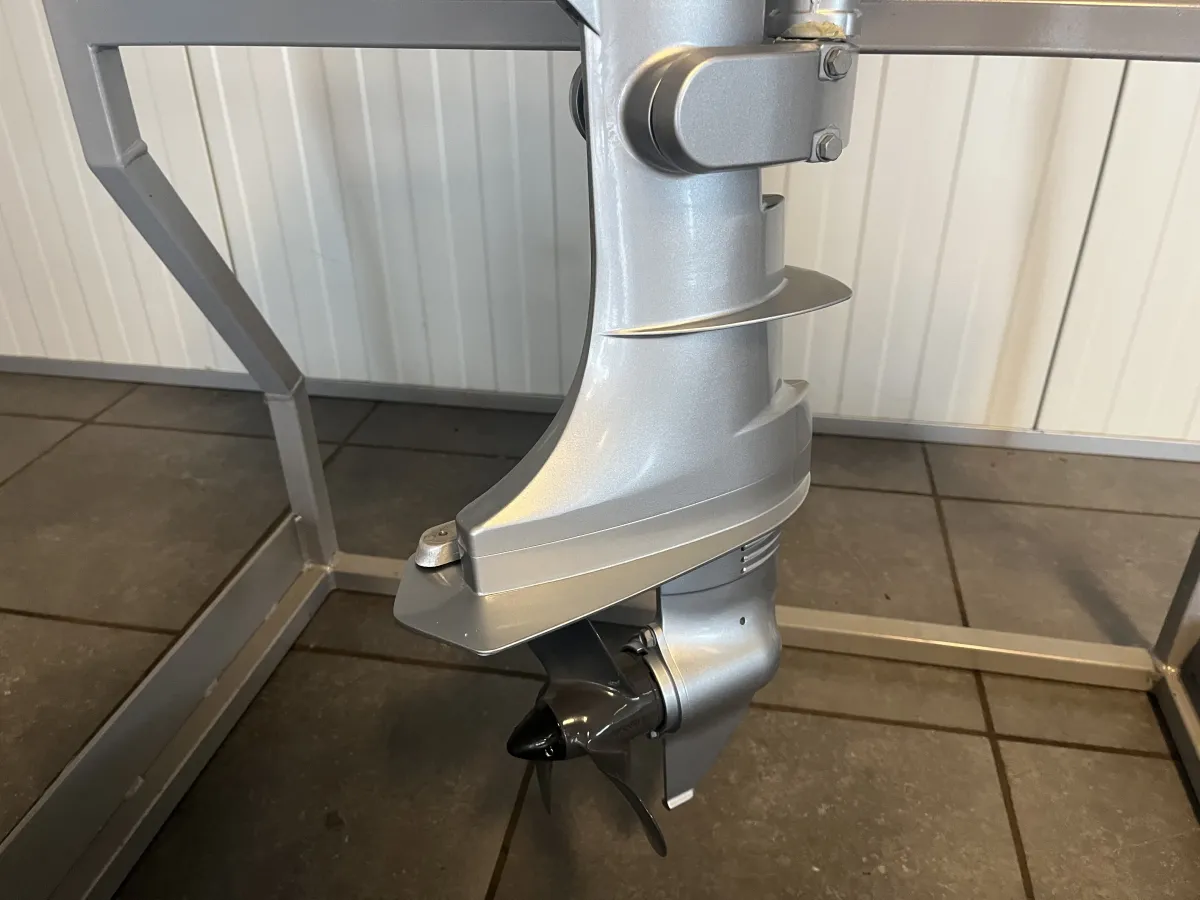

The gearbox ratio is 2.08:1, and the engine has three gears: forward, neutral, and reverse. This makes maneuvering in harbors or docking easier. The steering angle of 180° offers great maneuverability, which is especially useful when navigating narrow or busy waterways.
Trim and Tilt System
The engine is equipped with a manual trim and tilt system with five positions. This allows the user to adjust the engine angle to the sailing conditions, which can improve performance and fuel consumption. This system also makes it easy to lift the engine out of the water in shallow areas or when docking.
Fuel Tank and Connection Options

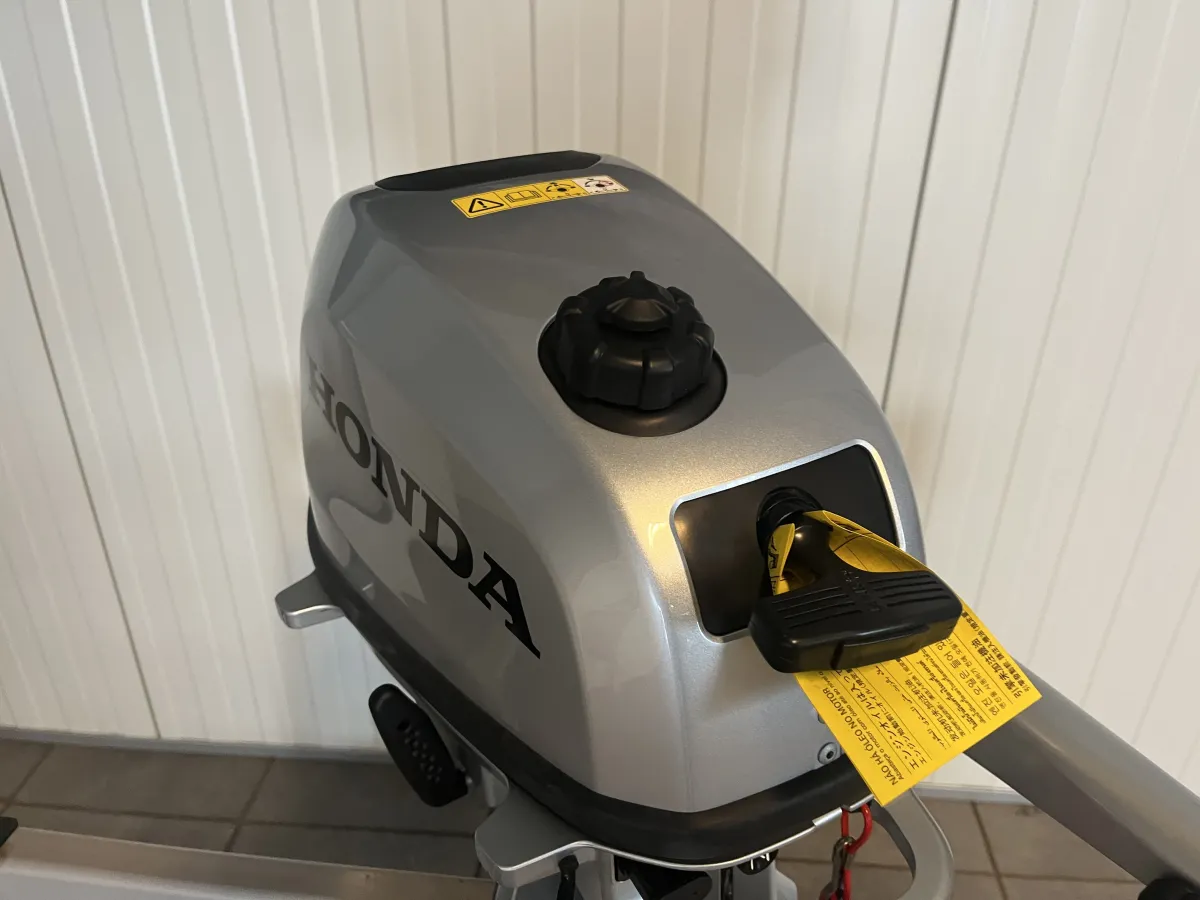

The Honda BF6A has a built-in fuel tank with a capacity of 1.5 liters. For longer trips or more intensive use, there is a connection available for an external fuel tank. This significantly increases the range and allows for extended operation without interruption.
Dimensions and Weight
The engine is a short shaft model with a transom height of 434 mm. The dimensions are 524 mm (length) x 347 mm (width) x 1,200 mm (height). The dry weight of the engine is 27.0 kg, making it easily portable. This low weight combined with the compact size makes the Honda BF6A particularly suitable for transport and storage, for example in the trunk of a car or in a boat storage.
Application Possibilities
The Honda BF6A is designed with versatility and ease of use in mind. Thanks to its compact size, low weight, and simple operation, this engine is a suitable choice for a variety of applications. Consider use on inflatable boats, small fishing boats, tenders for larger yachts, or as an auxiliary engine for sailboats. The engine is also suitable for use on inland waters, lakes, and calm coastal areas.
The 2022 Honda BF6A outboard motor is a practical and efficient power source for smaller vessels. With a power output of 6 hp, a manual trim system, a built-in fuel tank, and the option to connect an external tank, this engine offers flexibility and ease of use. The combination of a lightweight design, reliable technology, and simple operation makes this engine an interesting option for water sports enthusiasts looking for a compact outboard motor for recreational use.
VIEWING DAY INFORMATION
- The viewing day of this Honda BF 6A is on Saturday 17 May 2025 van 10:00 until 12:00 in Overijse (BE).
ADDITIONAL INFORMATION
- We advise making use of the viewing day.
- This is a VAT product, and the bid price will be increased by 21% VAT.
- This product is sold under the general and special auction conditions.
- This concerns a public auction, which means that the purchase cannot be returned based on the legal right of withdrawal.
| Brand | Honda |
| Type | BF 6A |
| Year of construction | 2022 |
| Engine type | Outboard engine |
| Brand motor | Honda |
| Model engine | BF 6A |
| Power (hp) | 6 |
| Number of cylinders | 1 |
| Year of construction of the engine | 2022 |
| Fuel | Gasoline |
| Tank capacity in liters | 1.5 |
